Spaltlampen-Bildgebung
Imaging Modul 910
Spaltlampendokumentation auf Knopfdruck

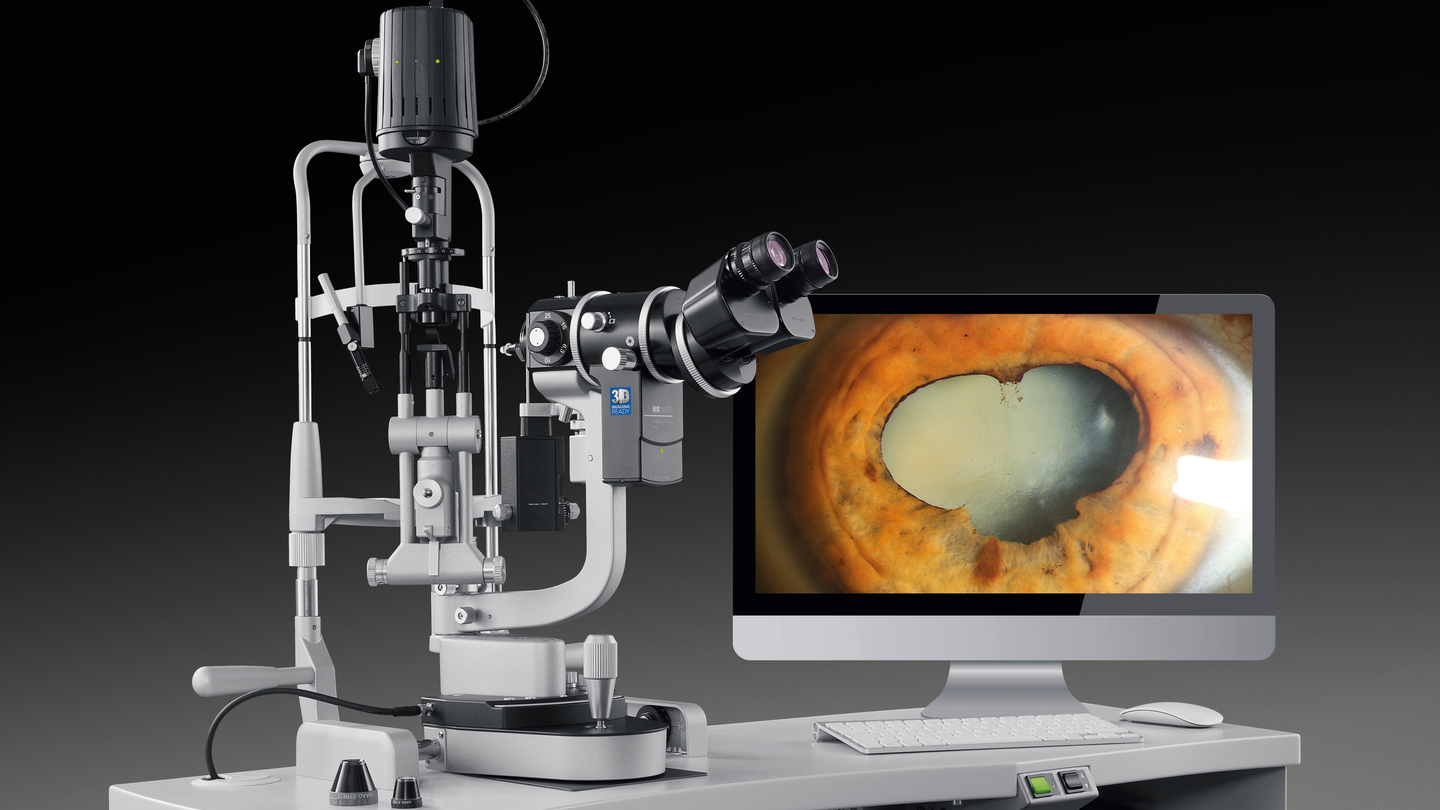

Das Imaging Module (IM 910) ist eine vollständig integrierte, kompakte Bildgebungslösung für die Spaltlampe BQ 900. Seine ausgeklügelte Bildgebung und der integrierte Arbeitsablauf vereinfachen und beschleunigen den Prozess der Generierung von aussagekräftigen und ausdrucksstarken Bildern mit einem Knopfdruck. Dadurch wird Ihr Tagesablauf rationalisiert, und Sie können sich voll auf die Untersuchung Ihrer Patienten konzentrieren.

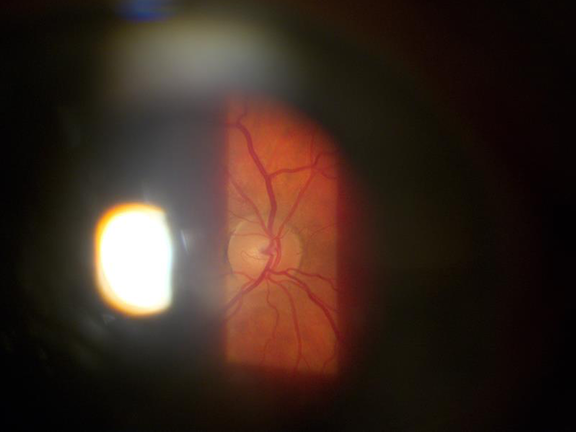

Gewährleistet ein gestochen scharfes und ausdrucksstarkes Bild
Produkt Video
Software screenshots
Imaging Module 910 | 3D Option | |
---|---|---|
Compatibility | ||
BQ 900 | ● | ● |
BP 900 | − | − |
BI 900 | − | − |
Beam path | ||
Right side | ● | ● |
Left side | − | ● |
Control panel | ||
RM03 | ● | ● |
RM02 | − | − |
Dept of focus control | ||
Adjustable aperture | ● | ● |
Fixed aperture | − | − |
Camera interface | ||
CoaXPress | ● | ● |
USB 3.0 | − | − |
Shutter system | ||
Global shutter | ● | ● |
Frame rate | ||
Max. 30 fps | ● | ● |
Operation mode | ||
Standalone mode | ● | ● |
EyeSuite mode | ○ | ○ |
Software | ||
EyeSuite Imaging | ○ | ○ |
EMR interfaces | ||
EyeSuite script language | ● | ● |
DICOM (SCU) | ● | ● |
GDT | ● | ● |
Samba Share for direct import into patient file | ● | ● |
Connector box | ||
CB01 | ● | ● |
CB01 connectivity | HDMI out, DisplayPort out, Ethernet | HDMI out, DisplayPort out, Ethernet |
● standard | ○ optional | − not available | □ not recommended
