Leistung und Langlebigkeit seit 90 Jahren
Spaltlampen

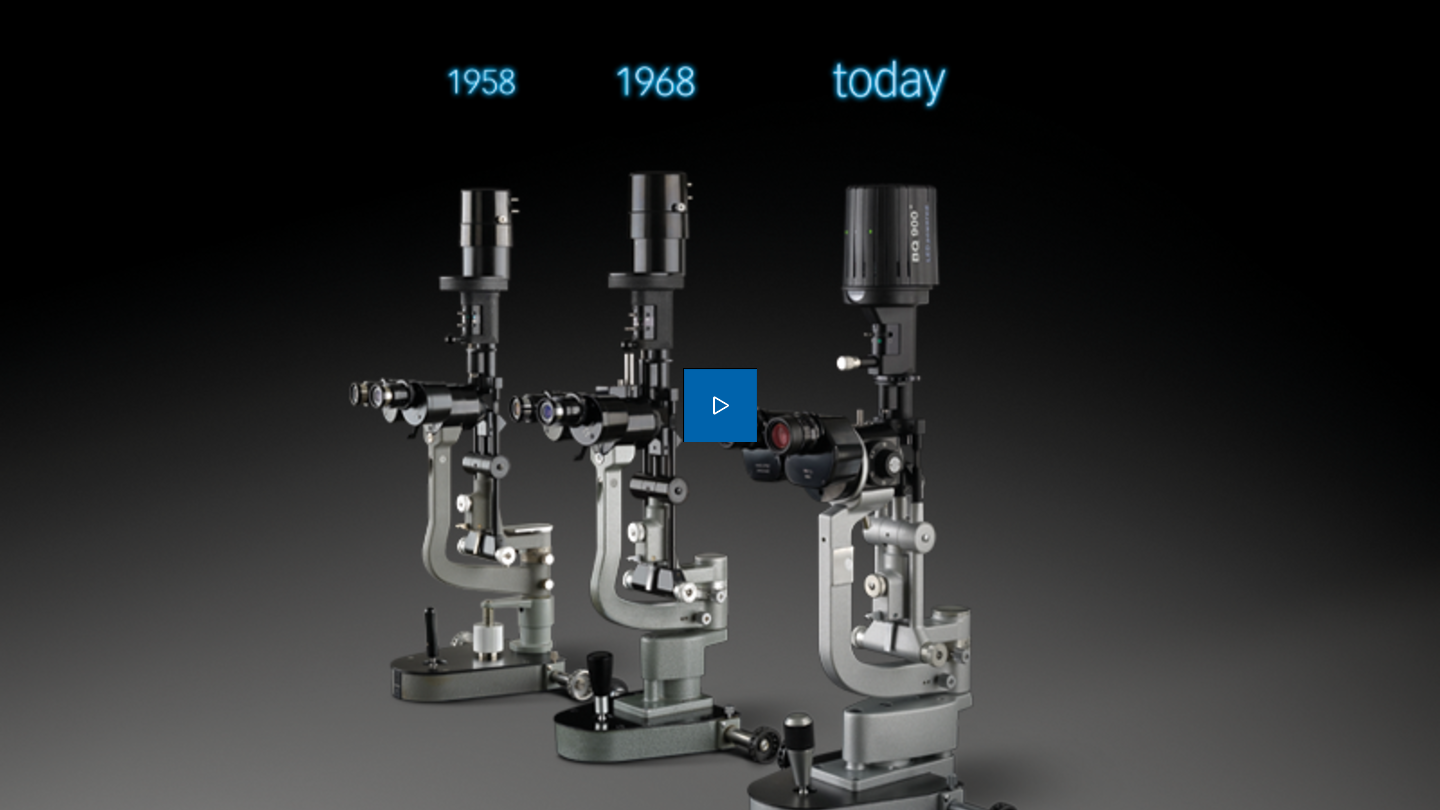

Haag-Streit Spaltlampen haben sich einen legendären Ruf für ihre Leistung und Langlebigkeit erworben. Seit mehr als 90 Jahren achten wir auf jedes Detail und setzen uns dafür ein, die besten Spaltlampen herzustellen, damit Ihnen kein Detail entgeht.
Vergleiche unsere Produkte
| Elara 900 | BQ 900 | BP 900 | BI 900 | BM 900 | BX 900 | |
|---|---|---|---|---|---|---|
| Microscope | ||||||
| Galilean microscope | ● | ● | ● | − | − | ● |
| Kepler microscope | − | − | − | ● | ● | − |
| Stereo angle 13° | ● | ● | ● | ● | ● | ● |
| Stereo variator (stereo angle 4.5°) | − | ○ | − | − | − | □ |
| Inclined eyepiece | ● | ○ | − | − | − | ○ |
| Yellow filter | ● | ○ | ○ | ● | − | ○ |
| Second observer tube | − | ○ | − | − | − | □ |
| Beam splitter | ● | ○ | − | − | − | □ |
| Magnification (Std. Eyepieces) | ||||||
| 6.3 × | ● | ● | − | − | − | ● |
| 10 × | ● | ● | ● | ● | ● | ● |
| 16 × | ● | ● | ● | ● | ● | ● |
| 25 × | ● | ● | ● | − | − | ● |
| 40 × | ● | ● | − | − | − | ● |
| Illumination | ||||||
| LED | − | ● | ● | ● | ● | ● |
| RGB-LED (P-Type) | ● | − | − | − | − | − |
| Presets | ● | − | − | − | − | − |
| Infrared (Availability may vary by region) | ● | − | − | − | − | − |
| Background | ● | ○ | ○ | ○ | − | ● |
| Tilt | − | ● | ● | ● | ● | ● |
| Defocusing | − | ● | ● | ● | ● | ● |
| Short illumination mirror | − | ○ | ○ | ○ | ○ | ○ |
| Filter | ||||||
| Grau | ● | ● | ● | ● | ● | ● |
| Red-free | ● | ● | ● | ● | ● | ● |
| Blue | ● | ● | ● | ● | ● | ● |
| Slit | ||||||
| Width (continuous) (mm / inch) | 0 - 25 mm / 0 - 0.98 inches | 0 - 14 mm / 0 - 0.55 inches | 0 - 14 mm / 0 - 0.55 inches | 0 - 14 mm / 0 - 0.55 inches | 0 - 8 mm / 0 - 0.315 inches | 0 - 8 mm / 0 - 0.315 inches |
| Length (continuous) (mm / inch) | 0 - 14 mm / 0 - 0.55 inches | 1 - 14 mm / 0.394 - 0.55 inches | 1 - 14 mm / 0.394 - 0.55 inches | 1 - 14 mm / 0.394 - 0.55 inches | 1 - 8 mm / 0.039 - 0.315 inches | 1 - 8 mm / 0.039 - 0.315 inches |
| Test mark fixation star | − | ● | ● | ● | ● | ● |
| Imaging | ||||||
| Integrated imaging (Stereo optional) | ● | − | − | − | − | − |
| IM 910 | − | ○ | − | − | − | − |
| IM 600 | − | ○ | ○ | − | − | − |
| Imaging Set BI 900 | − | − | − | ○ | − | − |
| DSLR camera connector | − | − | − | − | − | ● |
| Integrated flash (slit and background) | − | − | − | − | − | ● |
| Control elements | ||||||
| Mechanical | ● | ● | ● | ● | ● | ● |
| Color touch display | ● | − | − | − | − | − |
| Tonometry | ||||||
| AT 900 mod. BQ | − | ○ | ○ | − | − | □ |
| AT 900 mod. R | ○ | − | − | ○ | ○ | − |
| AT 900 mod. T | − | ○ | ○ | ○ | ○ | − |
| Dimensions | ||||||
| Weight (kg / lbs) | 15.2 kg / 33.51 lbs | 12.7 kg / 20.28 lbs | 12.3 kg / 27.11 lbs | 12 kg / 26.45 lbs | 11.4 kg / 25.13 lbs | 14.8 kg / 32.63 lbs |
| Dimensions L x W x H (mm / inch) | 560 mm × 401 mm × 330 mm / 22 x 15.8 x 13 inches | 305 x 332 x 700 mm / 12 x 13 x 27.56 inches | 305 x 332 x 700 mm/ 12 x 13 x 27.56 inches | 310 x 332 x 700 mm / 12.2 x 13 x 27.56 inches | 290 x 332 xx 700 mm / 11.42 x 13 x 27.56 inches | 370 x 332 x 800 mm / 14.57 x 13 x 31.5 inches |
● standard | ○ optional | − not available | □ not recommended
Verlässlichkeit die überzeugt
